Characteristics of Stepper motor 28BYJ-48 (in mm) (schematic retrieved from https://cookierobotics.com/042/)
In order to mount the stepper motor to the chassis of the Firefighting Arduino Capstone Project, we needed to create a mount that could hold the stepper motor in place and attach properly to the chassis. To make the motor mount, I used a Prusa Mini 3D printer with generic plastic as the filament and set the print settings to 0.15mm QUALITY. Based on the measurements of the motor, I increased the size of the hole for the output shaft to avoid any conflict with the tolerance with the Prusa Mini or the motor itself. After I printed the motor mount, the output shaft of the stepper motor fit well into the cutout. The screw holes were aligned with the proper cutouts in the motor mount.
Final Product with Stepper Motor

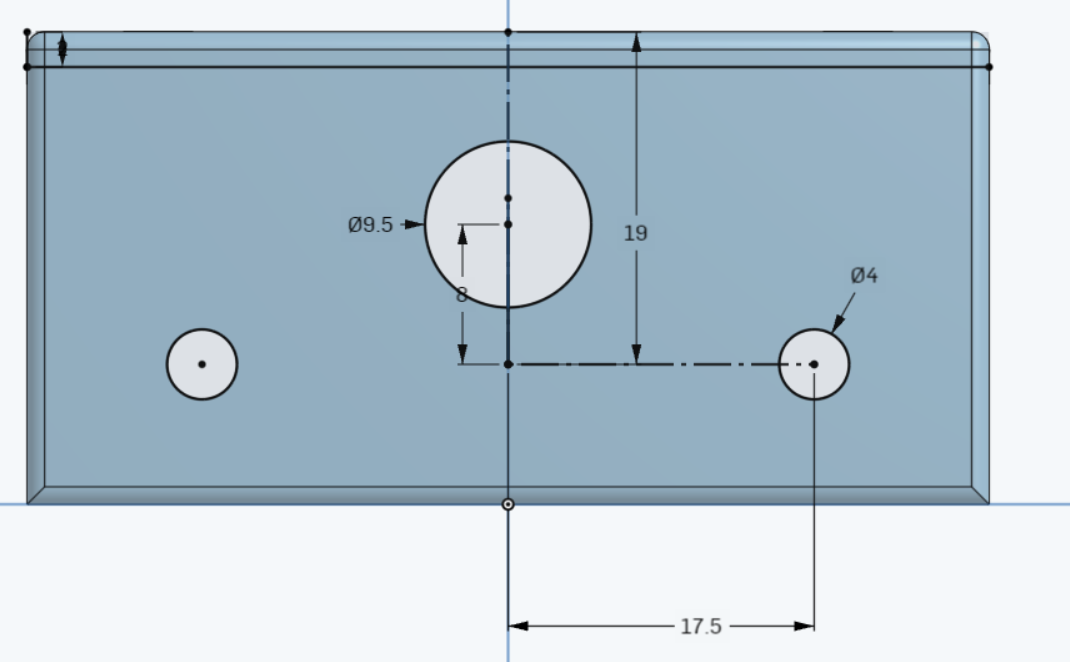

Front side of motor mount (in mm)
Top side of motor mount (in mm)
Side of motor mount (in mm)
